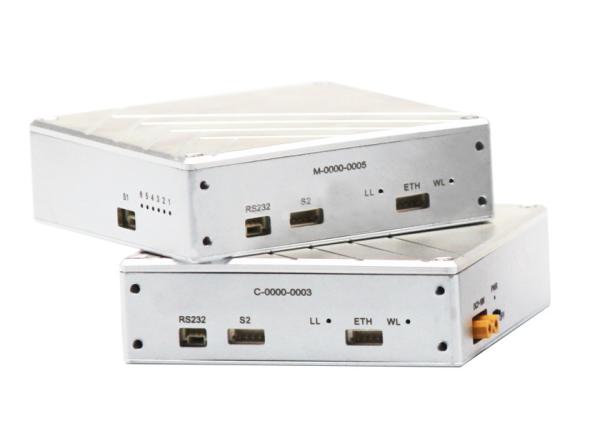

30km 1.5W COFDM Military/Army Wireless Transmitter And Receiver 2.402-2.478GHz Adjustable

FIM-2430 is a full HD video transmission system equipment professional for UAVs, standard COFDM modulation. The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate, and then improve image quality. It can be the lowest bit rate to achieve the best quality of image.
Supports RF power 500mW-1.5W, HDMI and AV Input. 2.402-2.478GHz (optional).

Features

• Ultra-high Resolution Image: Independently developed CABAC (h.264) coding&decoding technology
• Ultra-distance: Air to ground 30km
• Ultra-low Delay: 50ms
• Transmission Mode: PTP
• Transmission Signal: Video, and data(TTL)

Video

• HDMI input/output and support TTL
• Image & data transmission, combined multiple radio links into one radio link to transmit and receive
• 1080p 60fps &30fps / 720P 60fps resolution adjustable
• TPlayer for ultra low delay decoding, the delay < 50ms
• Support 100Mbps Ethernet to output

Communication

• Support the 2.4GHz(2.402 - 2.478 GHz)TDD-COFDM
• Support point to point, point to multipoint.
• Radio communication mode: reconnection time < 1 ms.
• Encryption: Communication Channel Encryption
• Antenna: Omnidirectional antenna can increase the sensitivity of signal reception

Application:

FIM-2430 wireless video transmitters are designed to withstand harsh environments and are ideal for Drones, UAS, UAV, UGV, Military, and other applications requiring efficient, high quality video/audio/data transmission in a compact, rugged package.

Parameters

About us:

IFLY Bi-Directional Data Links are wireless communication units specifically designed for long range links for various types of unmanned aerial and ground vehicles. It support 5km/10km/20-30km/30-50km/70-120km range. It mostly application is for mapping, emergency, detect and Sea Rescue.

By employing leading wireless technologies, the IFLY family of products delivers long-range communication that supports Bi-directional Data and enables real-time full HD Video Streaming.

IFLY stands out from other UAV communication systems in that it combines control, telemetry and payload into one RF channel and in a compact and lightweight solution.

With AES encryption mechanism, built-in flexibility to optimize to customer needs and robust link that operates in long-ranges and overcomes dead spots, IFLY UAV data link provides safe link for drone communication in government, army and commercial applications.

Why IFLY?

IFLY provides H.264/H.265 ,CODEC RTL IP Cores,
CODEC FPGA Boards, and CODEC FPGA Modules for hardware video systems.

IFLY maintains technique co-operation relationship with some world well-known enterprises, such as Sony ,Panasonnic and Huawei.
IFLY UAV radio links provides comprehensive progress in the video transmission application technology, develop high-standard product solutions and perfect customer service system.

1. Bi-directional and configurable software defined radio (SDR) data link

2. 5km-120km Line-of-Sight (LOS) range

3. ISM Frequency 1.2G/1.3G.1.4G/2.3G/2.4G/2.5Ghz for your option

4. Encrypted & Secured

5. Control, monitoring, telemetry and real-time Full HD rvideo

6. Compatible with Pixhawk fly controller

7. Compact & Lightweight Solution

8. Support Video Input HDMI and IP

9. Latency 15-30ms
