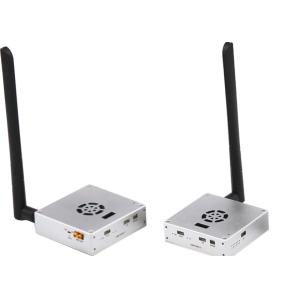

15ms latency Long Range 30km Drone Video Transmitter With High Sensitivity -100dbm@4Mhz

Description

FIM-2430 is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (h.264) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 30km) and low delay(15-30ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, baud rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this IFLY series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Features:

• Low delay time less than 15ms
• Lightweight, less than 150g
• Small size
• 30km LOS distance on air
• High quality and cost COFDM video transmitter
• Aluminum-unibody housings featured, good impact resistance and heat dissipation
• Special design for long range drone uav

Packaging Details:

1* Transmitter;
1* Receiver;
1* Large fiberglass antenna;
3* Omni antenna;
3* RF cables.

4* TTL Cable

2* Ethernet Cables

3* Power Cable

2* HDMI Cables

1* Software

1* Key

1* Package Box

Parameters

About us:

IFLY Bi-Directional Data Links are wireless communication units specifically designed for long range links for various types of unmanned aerial and ground vehicles. It support 5km/10km/20-30km/30-50km/70-120km range. It mostly application is for mapping, emergency, detect and Sea Rescue.

By employing leading wireless technologies, the IFLY family of products delivers long-range communication that supports Bi-directional Data and enables real-time full HD Video Streaming.

IFLY stands out from other UAV communication systems in that it combines control, telemetry and payload into one RF channel and in a compact and lightweight solution.

With AES encryption mechanism, built-in flexibility to optimize to customer needs and robust link that operates in long-ranges and overcomes dead spots, IFLY UAV data link provides safe link for drone communication in government, army and commercial applications.

Why IFLY?

IFLY provides H.264/H.265 ,CODEC RTL IP Cores,
CODEC FPGA Boards, and CODEC FPGA Modules for hardware video systems.

IFLY maintains technique co-operation relationship with some world well-known enterprises, such as Sony ,Panasonnic and Huawei.
IFLY UAV radio links provides comprehensive progress in the video transmission application technology, develop high-standard product solutions and perfect customer service system.

1. Bi-directional and configurable software defined radio (SDR) data link

2. 5km-120km Line-of-Sight (LOS) range

3. ISM Frequency 1.2G/1.3G.1.4G/2.3G/2.4G/2.5Ghz for your option

4. Encrypted & Secured

5. Control, monitoring, telemetry and real-time Full HD rvideo

6. Compatible with Pixhawk fly controller

7. Compact & Lightweight Solution

8. Support Video Input HDMI and IP

9. Latency 15-30ms
