FPV Drone go pro HD(1080P) long distance (3-5KM) digital wireless video transmitter

Data Sheet

Introduction

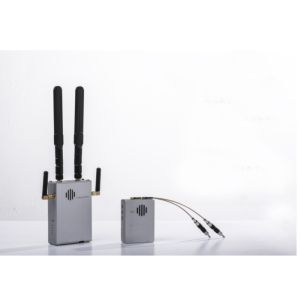

F350 is the 1080p Full HD digital video transmission system including one transmitter and one receiver. Transmitting the video, image, OSD and more information by the wireless communication mode. It is perfect for all fields video transmission because of its light weight, low power consumption, long distance and low latency. This digital video transmission system is based on 5G frequency and with a maximum 5km range in the air with omni-directional antennas. Latency is less than 100ms. Please put ground system antenna wide side face to transmitter, otherwise, the work distance will be reduce to 50%. The output power is adjustable from 20mw to 800mw. The Receiver module has both HDMI output and wifi output, so the wireless video can be displayed on a Monitor and mobile phone at the same time.

Connection

Key Features

- Up to input resolution: 1080P, 720P supported.

- Maximum Transmission Distance: 3KM on the ground; More than 5KM air to ground.

- Transmission power: 20mW~800mW adjustable

- Weight: (Transmitter) 70g /(Receiver) 200g

- Latency: Less than 100ms

- Frequency: 5Ghz

- Input: HDMI

-Output: WIFI (for mobile devices) & HDMI (for HDMI display devices)

- Other features: Multi-persons monitoring; Built-in OSD

Interface

Tx

Rx

Package List

1. 1 unit transmitter and receiver

2. 2pcs transmitter antennas

3. 1pc Power cable

4. 1pc HDMI cable (D-D)

5. 2pcs receiver antennas

6. 2ps Mobile Antennas

7. 1pc extension bar

About us:

IFLY Bi-Directional Data Links are wireless communication units specifically designed for long range links for various types of unmanned aerial and ground vehicles. It support 5km/10km/20-30km/30-50km/70-120km range. It mostly application is for mapping, emergency, detect and Sea Rescue.

By employing leading wireless technologies, the IFLY family of products delivers long-range communication that supports Bi-directional Data and enables real-time full HD Video Streaming.

IFLY stands out from other UAV communication systems in that it combines control, telemetry and payload into one RF channel and in a compact and lightweight solution.

With AES encryption mechanism, built-in flexibility to optimize to customer needs and robust link that operates in long-ranges and overcomes dead spots, IFLY UAV data link provides safe link for drone communication in government, army and commercial applications.

Why IFLY?

IFLY provides H.264/H.265 ,CODEC RTL IP Cores,
CODEC FPGA Boards, and CODEC FPGA Modules for hardware video systems.

IFLY maintains technique co-operation relationship with some world well-known enterprises, such as Sony ,Panasonnic and Huawei.
IFLY UAV radio links provides comprehensive progress in the video transmission application technology, develop high-standard product solutions and perfect customer service system.

1. Bi-directional and configurable software defined radio (SDR) data link

2. 5km-120km Line-of-Sight (LOS) range

3. ISM Frequency 1.2G/1.3G.1.4G/2.3G/2.4G/2.5Ghz for your option

4. Encrypted & Secured

5. Control, monitoring, telemetry and real-time Full HD rvideo

6. Compatible with Pixhawk fly controller

7. Compact & Lightweight Solution

8. Support Video Input HDMI and IP

9. Latency 15-30ms
