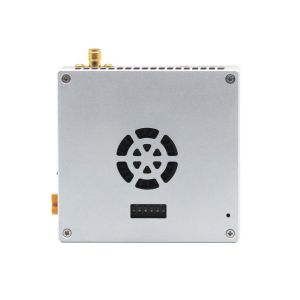

    long range video transmitter for fpv and uav flying

    2.4GHz W FPV Audio Video Transmitter DC 12V For Drone UAV Projecton

    Product description:


    The Wireless HD Video transmitter system FIP-2420 is for professional application in wireless aerial transmission. The wireless video system that transmits HD video over the unlicensed 2.4GHz band.
    It is featured with long range, ultra-low latency. The system can be powered by batteries.


    Key features:

    • Light weight, low power consumption
    • Provide RJ45 RS232 interdace, video audio data and signal all can transmission
    • HD1080P, clear and stable image , no tailing phenomenonStrong diffraction ability
    • Long-distance transmission air to groundtransmission
    • Support point to point and point to multi point transmission
    • Support SBUS,PPM,TTL
    • RJ45+TTL bidirectional serial port. The serial port can match external S1and S2 modul

    This model has advantages of light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.


    Parameter

    Model: FIP-2420
    Frequency2.4GHz (2.402-2.478GHz)Adjustable
    RF Transmitting Power

    F-UE-2420: 33dBm(air to ground 20km)

    Frequency Bandwidth4MHz/8MHzAdjustable
    Antenna1T1R
    Adjustment mode of bit rateSoftware adjustment
    Communication Channel EncryptionAES 128
    Transmission Modepoint to point / point to multipoint
    Start-up time< 30s
    Transmission Distance

    FIP-2420: Air to ground 20km

    System Latency0ms
    Two-way function

    Integrate multiple radio links into one to transmit and receive.

    Support SBUS/PPM/TTLS 1 pro communication module

    Optional
    Transmitting Rate5Mbps
    PowerDC7-12VDC7~18V Optional
    Temperature

    Operating temperature: -40 - 85°C

    Storage temperature: -55 - 100°C

    Interface

    Power input interface × 1

    Antenna interface × 1

    RS232 Bidirectional Port × 1

    Ethernet to USB / RJ45 on Windows × 1

    Software adjustment
    Indicator Light

    RJ45 input/output indicator light

    Transmitting and receiving indicator light

    Transmitting and receiving indicator light

    Power light

    Appearance DesignCNC technology/ double aluminum alloy shell with waterproof design
    Net WeightTx:148g Rx: 148g
