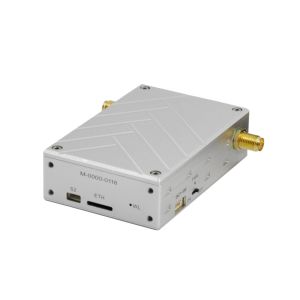

93g The smallest wireless video Transmitter for UAV system

Product Description

FIM-2410 is a mini HDMI Video and Data transmission COFDM system for UAV. It support HD1080P video. It develops H.264+H.265 coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 8-12km) and low delay(12-25ms) transmission. The system supports (data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this IFLY series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Advantages:

• Transmit one road high quality 1080P video and two SBUS/PPM/TTL data at the same time.
• Support MAVLINK
• High speed transmission in fast mobile circumstance.
• AES encrypted transmission
• Short system delay time: less than 25ms, almost real time transmission.
• Applied to all kinds of UAV drone with small size ,light weight ,low power consumption

Application:

As its small size, lightweight and low RF power, the transceiver is widely used in multiple rotor drone, flight test.

Data Sheet

Application

About us:

IFLY Bi-Directional Data Links are wireless communication units specifically designed for long range links for various types of unmanned aerial and ground vehicles. It support 5km/10km/20-30km/30-50km/70-120km range. It mostly application is for mapping, emergency, detect and Sea Rescue.

By employing leading wireless technologies, the IFLY family of products delivers long-range communication that supports Bi-directional Data and enables real-time full HD Video Streaming.

IFLY stands out from other UAV communication systems in that it combines control, telemetry and payload into one RF channel and in a compact and lightweight solution.

With AES encryption mechanism, built-in flexibility to optimize to customer needs and robust link that operates in long-ranges and overcomes dead spots, IFLY UAV data link provides safe link for drone communication in government, army and commercial applications.

Why IFLY?

IFLY provides H.264/H.265 ,CODEC RTL IP Cores,
CODEC FPGA Boards, and CODEC FPGA Modules for hardware video systems.

IFLY maintains technique co-operation relationship with some world well-known enterprises, such as Sony ,Panasonnic and Huawei.
IFLY UAV radio links provides comprehensive progress in the video transmission application technology, develop high-standard product solutions and perfect customer service system.

1. Bi-directional and configurable software defined radio (SDR) data link

2. 5km-120km Line-of-Sight (LOS) range

3. ISM Frequency 1.2G/1.3G.1.4G/2.3G/2.4G/2.5Ghz for your option

4. Encrypted & Secured

5. Control, monitoring, telemetry and real-time Full HD rvideo

6. Compatible with Pixhawk fly controller

7. Compact & Lightweight Solution

8. Support Video Input HDMI and IP

9. Latency 15-30ms
